Inspection Services
Advanced diagnostic capabilities for thorough assessment and fault detection.
- Visual & dimensional inspection
- Borescope internal analysis
- AOG field support & assessment
- Corrosion & damage evaluation
- Non-Destructive Testing (NDT)

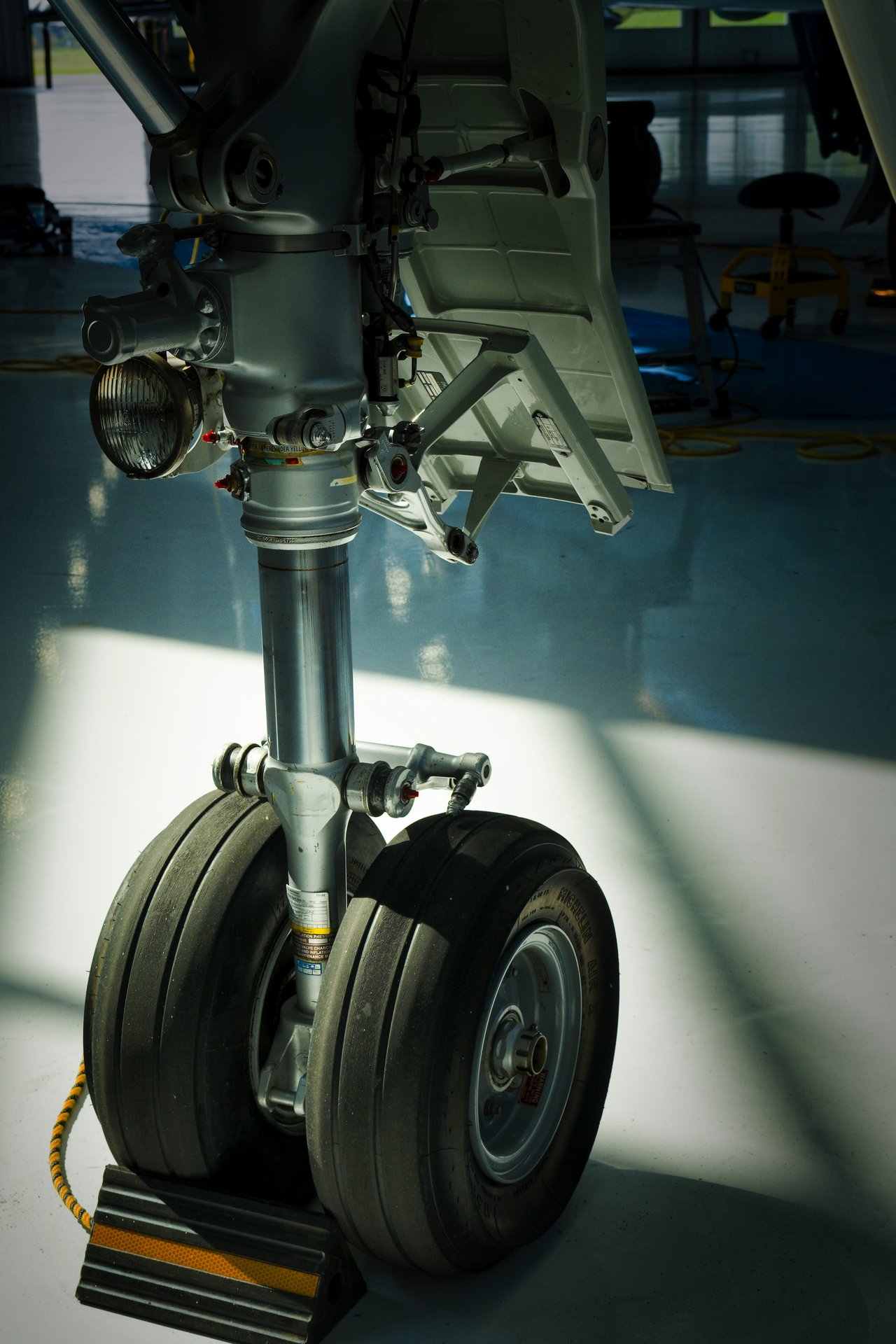

Aircraft Landing Gear Overhaul & Repair
Full-spectrum landing gear MRO for commercial, regional and defense aircraft, main & nose gear assemblies, sub-assemblies and rotables. Every process performed in-house under FAA & EASA Part 145 authority.
Complete MRO Services
Full-lifecycle landing gear support
Inspection · Overhaul · Engineering, for narrow-body, wide-body, regional, turboprop and defense platforms.
Overhaul Procedures
Complete restoration to zero-time condition per OEM specifications.
- Full assembly teardown & cleaning
- Paint stripping & surface prep
- Component repair & replacement
- Precision reassembly
- Surface treatment & plating
Component Repair
Targeted repairs for critical landing gear sub-assemblies and parts.
- Shock struts & metering pins
- Hydraulic actuators & valves
- Uplocks, downlocks & braces
- Bushing replacement & machining
Testing & Validation
Rigorous verification to ensure operational safety and performance.
- Functional & operational cycling
- Hydraulic pressure & leak testing
- Proof load testing
- Electrical continuity checks
- Sensor calibration & verification
Traceability & Docs
Complete records ensuring regulatory compliance and asset value.
- Back-to-birth traceability
- FAA 8130-3 / EASA Form 1
- Detailed teardown reports
- Certificate of Conformance (CoC)
- Digital record archiving
Exchange & Lease
Flexible asset solutions to minimize aircraft downtime (AOG).
- Rotable exchange pool access
- Short & long-term leasing
- Forward exchange options
- Loaner gear availability
- Asset management solutions
Critical Subsystems
Expertise across every landing gear subsystem
From massive primary structures to precision sensing units, all under one Part 145 roof.
Shock Absorption
Oleo-pneumatic struts, precision metering pins, recoil valves and fluid dynamics optimization.
Actuation
Hydraulic & electric actuators, uplock / downlock mechanisms, sequencing valves and gear door systems.
Steering Control
Nose-wheel steering actuators, rack & pinion assemblies, shimmy dampers and self-centering cams.
Wheels & Brakes
Carbon & steel brake stacks, anti-skid valves, fusible plugs, TPIS and wheel assembly NDT.
Sensing & Avionics
Proximity sensors, LVDTs, Weight-on-Wheels (WOW) switches and BITE system integration.
Fluid Distribution
Manifolds, rigid plumbing, flexible hoses, swivel joints and high-pressure seals.
Component Anatomy
Landing gear components we overhaul
Full coverage from primary structures through life-limited parts (LLPs) to sensing & control hardware.
Primary Structures
01
Shock Strut (Oleo)
Outer & inner cylinders, gland, packing & metering pins.
02
Torque Links (Scissor)
Maintains alignment between inner & outer cylinders.
03
Drag & Side Braces
Structural support & positive locking during extension.
04
Truck / Bogie Beam
Multi-wheel support on wide-body main gear.
05
Axle & Axle Nuts
Wheel mount, bearing seats, locking hardware.
06
Trunnion & Attachments
Primary structural attachment to airframe.
Retraction & Locking
07
Hydraulic Actuator
Primary retraction / extension hardware.
08
Downlock / Uplock
Positive locking mechanisms with proximity sensing.
09
Locking Pins & Brackets
Drag brace locks & retraction brackets.
Wheels, Brakes & Steering
10
Brake Assembly
Discs, pistons, pads, control valves, anti-skid & heat shields.
11
Wheel Hub & Tire
Hub NDT, bearing seats, tire bead seating.
12
Steering Actuator
Nose-wheel steering actuators & collars.
13
Shimmy Damper
Hydraulic damper rebuild & functional test.
Sensors & Hardware
14
Squat / WOW Switch
Weight-on-wheels detection & calibration.
15
Proximity Sensors
Position indication & gear warning integration.
16
Bushings & Bearings
Precision-machined replacements per CMM.
17
Hydraulic Lines & Fittings
Rigid plumbing, flexible hoses, swivel joints, seals.
Common Landing Gear Issues
Faults we diagnose & resolve
From hydraulic leaks to structural fatigue, our team understands the failure patterns intimately.
Hydraulic Leaks
Causes: seal degradation, scored cylinders, corrosion pits, over-pressure events.
Resolution: seal replacement, cylinder grinding & re-plating, leak-down testing.
Corrosion & Pitting
Causes: environmental exposure, salt-air operation, plating breakdown.
Resolution: strip & reprocess plating, dimensional restoration via HVOF or hard chrome, salt-spray verification.
Shock Absorber Malfunctions
Causes: nitrogen pre-charge loss, oil contamination, worn metering pins.
Resolution: servicing, metering pin grinding, recoil valve overhaul.
Structural Fatigue & Cracks
Causes: cyclic loading, hard landings, overstress events.
Resolution: FPI / MPI inspection, DER-approved repairs, shot peening for fatigue life extension.
Shimmy & Wheel Vibration
Causes: shimmy damper wear, torque-link play, tire imbalance.
Resolution: damper rebuild, link bushing replacement, dynamic balancing.
Retraction / Extension Faults
Causes: sequencing-valve wear, uplock failure, actuator internal leakage.
Resolution: functional cycling, sequencing valve overhaul, actuator rebuild & test.
Optimized 7-Step Cycle
Our landing gear MRO workflow
A disciplined process built for predictable, repeatable, on-time delivery.
- STEP 01
Quote & Workscope
Evaluation, customer requirements definition and detailed workscope.
- STEP 02
Receiving & Inspection
Documentation check, visual inspection and condition photography.
- STEP 03
Teardown & NDT
Disassembly, paint stripping, cleaning and NDT for cracks and defects.
- STEP 04
Repair & Procurement
Parts procurement and engineering repairs per approved technical data.
- STEP 05
Precision Reassembly
Assembly with strict torque controls, bushings and surface protection.
- STEP 06
Testing & Validation
Functional cycling, hydraulic pressure testing and leak checks.
- STEP 07
Certification & Ship
Final QC, 8130-3 / Form 1 issuance, packaging and shipping.
Regulatory Compliance
Maintenance standards & references
FAA · EASA · OEM data. Every release is backed by the right regulatory framework.
FAA AC 25.729-1
Guidance for landing gear retracting mechanisms and safety.
14 CFR Part 25 Subpart D
Core design and load considerations for transport-category aircraft.
FAA AC 43.13-1B
Acceptable methods, techniques, and practices for inspection & repair.
EASA CS-25
European certification specifications for large aeroplanes.
OEM & Technical Data
Strict adherence to approved Component Maintenance Manuals (CMM).
RTCA DO-160
Environmental conditions and test procedures for airborne equipment.
Ready when you are
Let's reduce your downtime & enhance landing safety
Partner with a dedicated landing gear specialist committed to keeping your fleet airworthy and on schedule.
